Attaching a leg developer to a standard weight bench can significantly expand your home gym’s lower-body training capabilities, often at a lower cost than purchasing a new bench. While many benches have proprietary attachments, a DIY approach offers customization and flexibility. This guide, informed by over a decade of experience with weight benches, details how to securely attach a leg developer, transforming your bench into a comprehensive workout tool for quadriceps and hamstrings.
Understanding Leg Developer Attachments and Your Bench
Before modifying, it’s crucial to understand leg developer types and their interaction with a weight bench. Most commercial leg developers slide into a specific receiver tube on a compatible bench, featuring padded rollers, a weight post for resistance plates, and a pivot point that should align with your knee joint for optimal exercise mechanics.
Key components of a DIY leg developer attachment, including rollers, weight post, and connection point, ready for assembly onto a weight bench.
For DIY attachments, two main scenarios exist:
- Adapting a Universal or Freestanding Leg Developer: These developers are positioned in front of the bench, relying on it for support, without physical bolting. The DIY focus is on enhancing stability and alignment.
- Modifying an Existing Leg Developer for a Non-Compatible Bench: This involves custom-fitting a leg developer from old equipment or a different brand to your current bench, often requiring more significant adjustments.
Project success depends on understanding your weight bench’s design. Check for existing receiver tubes (often square or rectangular), measure their internal dimensions, and note the steel gauge and overall stability, especially where the attachment will exert force.
DIY Methods for Secure Attachment
The goal of any DIY leg developer attachment is to create a secure, stable, and functional unit. Here are a few effective methods, from simple enhancements to more involved modifications:
Method 1: Enhancing Stability for Universal Leg Developers
Many “universal” leg developers simply rest against the front of your bench. This can lead to wobbling or an insecure feel, especially with heavier loads.
Steps for Stabilization:
- Measure and Mark: Position the universal leg developer exactly where you intend to use it with your bench. Measure the distance between the front of your bench’s frame and the base of the leg developer.
- Create a Support Block: Cut a sturdy piece of wood (e.g., a 2×4 or 4×4) to this precise length. This block will sit between the leg developer and the bench.
- Secure the Block: Drill pilot holes through the wooden block and into the underside of your bench frame (if safe) and secure with carriage bolts, or use a non-slip mat underneath the block and leg developer to prevent shifting. For maximum stability, add small L-brackets to connect the wooden block to the leg developer’s frame.
- Test for Fit: The goal is to create a snug, immovable unit when the bench is pushed against the leg developer, integrating the two pieces without permanent modification to the leg developer itself.
Method 2: Adapting an Existing Leg Developer to Your Bench
If you’ve sourced a leg developer from another piece of equipment, you’ll likely need to adapt its connecting tube to fit your bench. This method assumes your bench has a suitable, sturdy point (like a crossbar or hollow leg) where an attachment could be inserted or secured.
Steps for Adaptation:
- Measure the Receiver: Carefully measure the internal and external dimensions of the potential attachment point on your weight bench, usually a square or rectangular steel tube.
- Measure the Developer’s Insert: Measure the external dimensions of the connecting shaft on your leg developer.
- Source or Fabricate an Adapter:
- If the Developer’s Insert is Smaller: Create a sleeve by finding a square or rectangular steel tube that fits snugly over the developer’s insert and into your bench’s receiver. If an exact fit is difficult, use shims (metal or hard plastic) to eliminate play.
- If the Developer’s Insert is Larger: This is more challenging. You might need to cut and weld a smaller tube onto the leg developer’s existing shaft, or find a larger receiver tube to securely attach to your bench (requiring metalworking skills). A simpler approach might be to bolt the leg developer onto the bench frame directly, bypassing the “insert” method, but this requires precision and strong fasteners.
- Drill Pin Holes: Once a snug fit is achieved (directly or with an adapter sleeve), mark and drill corresponding holes through both the bench’s receiver and the leg developer’s insert/adapter. These holes will accommodate a sturdy steel locking pin. Ensure perfect alignment to avoid weakening the structure.
- Reinforce (Optional but Recommended): For added safety, consider using heavy-duty U-bolts or c-clamps to further secure the leg developer to the bench frame, particularly if the fit is not perfectly tight or if you plan to use heavy weights.

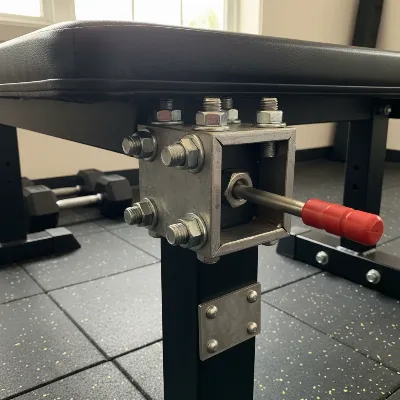

DIY leg developer attachment on a weight bench, showcasing the secure connection point with bolts and a locking pin.
Method 3: Simple Band-Based Leg Developer
For a minimalist DIY approach, resistance bands can effectively simulate leg extensions and curls without mechanical attachment.
Steps for Band Setup:
- Bench Position: Place your adjustable bench in a flat or slightly inclined position.
- Anchor Bands: Secure one end of heavy-duty resistance bands to a sturdy anchor point behind or underneath the bench (e.g., a heavy dumbbell, a rack leg).
- Loop Around Ankles: Loop the other end of the bands around your ankles, just above your feet.
- Perform Exercises:
- Leg Extensions: Sit on the bench, lean back slightly, and extend your legs against the band’s resistance.
- Leg Curls: Lie prone on the bench, with your knees near the edge. Curl your legs upwards against the band’s resistance.
This method requires no modification to your bench and is excellent for warming up, high-repetition work, or when space is extremely limited.
Essential Tools and Materials for DIY
|
Our Picks for the Best Weight Bench in 2026
As an Amazon Associate I earn from qualifying purchases.
|
||
| Num | Product | Action |
|---|---|---|
| 1 | Adjustable Weight Bench, Foldable Workout Benches for Home Gym, 10 Backrest Position Exercise Bench for Strength Training, Upgraded Thickened Steel Support Max Capacity 700LBs |
|
| 2 | CAP Barbell Multi-Purpose Adjustable Utility Strength Training Weight Bench | Multiple Options |
|
| 3 | Adjustable Weight Bench for Home Gym, Foldable Workout Bench for Full Body Fitness Dumbbell Exercise, 600LBS Incline Decline Flat Bench with Resistance Bands for Strength Training |
|
| 4 | Yoleo Adjustable Weight Bench for Full Body Workout; Foldable Bench Press Bench of Home Gym Strength Training; Incline Decline Flat Utility Workout Bench with Quick Folding& Fast Adjustment (Black) |
|
| 5 | Adjustable Weight Bench - 1000LBS Capacity Heavy Duty Foldable Workout Bench for Full Body Exercise, Flat/Incline/Decline, Bench Press for Home Gym with Preacher Pad & Leg Extension |
|
| 6 | Assemble-Free Foldable Weight Bench Press for Home Gym, 660 LBS Capacity Incline Decline, Sit-up Bench for Full-Body Strength Training |
|
| 7 | Marcy Exercise Utility Bench for Upright, Incline, Decline, and Flat Exercise SB-261W , Black , 42.00 x 19.00 x 51.00 inches |
|
| 8 | Marcy Multi-Purpose Adjustable Workout Utility Weight Bench for Full Body Upright, Incline, Decline, and Flat Exercise SB-228 , 42.00 x 26.00 x 48.00 inches, Black |
|
| 9 | Amazon Basics Adjustable Workout Weight Bench Press, Foldable for Home Gym, Black |
|
| 10 | Yoleo Adjustable Weight Bench, 660LB Foldable Workout Bench with Extended Head/Neck Protection/Spine Support for Bench Press, Fast Folding Incline Decline Flat Bench |
|
To successfully attach a leg developer, you’ll need a few common tools and materials:
- Measuring Tape and Ruler: For precise measurements of tubes and distances.
- Drill and Metal Drill Bits: Essential for creating or enlarging pin holes in steel.
- Wrenches and Sockets: For tightening bolts and nuts.
- Hacksaw or Angle Grinder (with appropriate safety gear): If you need to cut steel tubing or plates for adapters or reinforcements.
- Files: To smooth any sharp edges after cutting or drilling.
- Steel Tubing (square or rectangular): For creating adapter sleeves or reinforcing connection points. Ensure it matches the gauge and strength of your existing bench.
- High-Strength Bolts, Washers, and Locking Nuts: For secure fastening.
- Steel Locking Pins: To secure the attachment in place through drilled holes.
- U-bolts or Heavy-Duty C-Clamps: For additional reinforcement.
- Non-Slip Mats: To prevent movement if using a freestanding setup.
- Safety Glasses and Gloves: Always wear appropriate personal protective equipment.
Safety Considerations and Best Practices
Safety is paramount when undertaking any DIY project, especially with fitness equipment. Always prioritize structural integrity and stability.
- Double-Check All Connections: Before every use, ensure all bolts, pins, and clamps are tightly secured. Any wobbling or looseness indicates a potential failure point.
- Start with Light Weights: Gradually increase the weight to test the strength and stability of your DIY attachment. This allows you to identify and address any weaknesses before they become a hazard.
- Inspect Regularly: Periodically check for signs of wear and tear, metal fatigue, or stress cracks, especially around drilled holes or welded joints.
- Proper Form: Always maintain proper exercise form. Even the most robust equipment can be unsafe if used incorrectly.
- Know Your Limits: Do not attempt modifications that are beyond your skill set or available tools, particularly those involving welding or heavy-duty metal fabrication. In such cases, professional assistance or purchasing a purpose-built attachment is advisable.
Conclusion
Attaching a leg developer to your weight bench through a DIY approach can significantly enhance your home gym, offering effective ways to target your quadriceps and hamstrings. By carefully assessing your bench, choosing the appropriate attachment method, utilizing the right tools, and meticulously adhering to safety guidelines, you can create a reliable and functional piece of equipment. The goal is a secure, stable, and effective setup that allows you to train with confidence and achieve your fitness goals.
Frequently Asked Questions
What are the main types of DIY leg developer attachments?
There are two main DIY scenarios: adapting a universal or freestanding leg developer to enhance stability, or modifying an existing leg developer to fit a non-compatible bench. A third minimalist option involves using resistance bands for leg exercises without any mechanical attachment.
What tools are essential for a DIY leg developer attachment?
Essential tools include a measuring tape, drill with metal bits, wrenches, and potentially a hacksaw or angle grinder for cutting steel. Materials like steel tubing, high-strength bolts, and steel locking pins are also crucial for secure fastening.
How can I ensure the safety of my DIY leg developer?
Prioritize safety by double-checking all connections before each use, starting with light weights to test stability, and regularly inspecting for wear or damage. Always use proper exercise form and avoid modifications beyond your skill level.
Can I use resistance bands instead of a mechanical leg developer?
Yes, resistance bands offer a minimalist DIY approach for leg extensions and curls. Secure one end to a sturdy anchor point and loop the other around your ankles. This method requires no bench modification and is great for warm-ups or high-repetition work.
What should I consider about my weight bench's design before starting?
Before starting, check your weight bench for existing receiver tubes and measure their internal dimensions. Note the steel gauge and overall stability, especially at the point where the leg developer attachment will exert force, to ensure compatibility and safety.
How to DIY Attach a Leg Developer to a Weight Bench
Transform your standard weight bench into a versatile lower-body training station by securely attaching a leg developer using one of three DIY methods.
Before starting, identify if you are adapting a universal leg developer or modifying an existing one. Measure your bench's potential attachment points, noting internal dimensions, steel gauge, and overall stability. This assessment is crucial for selecting the correct DIY method.
Select from three methods: enhancing stability for universal developers with a support block, adapting an existing developer with an adapter sleeve and pin holes, or using resistance bands for a no-modification approach. Each method requires specific tools and materials like steel tubing, bolts, or heavy-duty bands. Follow the detailed steps for your chosen method carefully.
For mechanical attachments, ensure all bolts, pins, and clamps are tightly secured. Drill precisely aligned pin holes and consider using U-bolts or C-clamps for additional reinforcement, especially if the fit is not perfectly tight. This step is critical for the stability and safety of your setup.
After assembly, always start with light weights to test the strength and stability of your DIY attachment. Gradually increase the load to identify any weaknesses. Periodically inspect all connections for wear, metal fatigue, or stress cracks to maintain safety over time.
